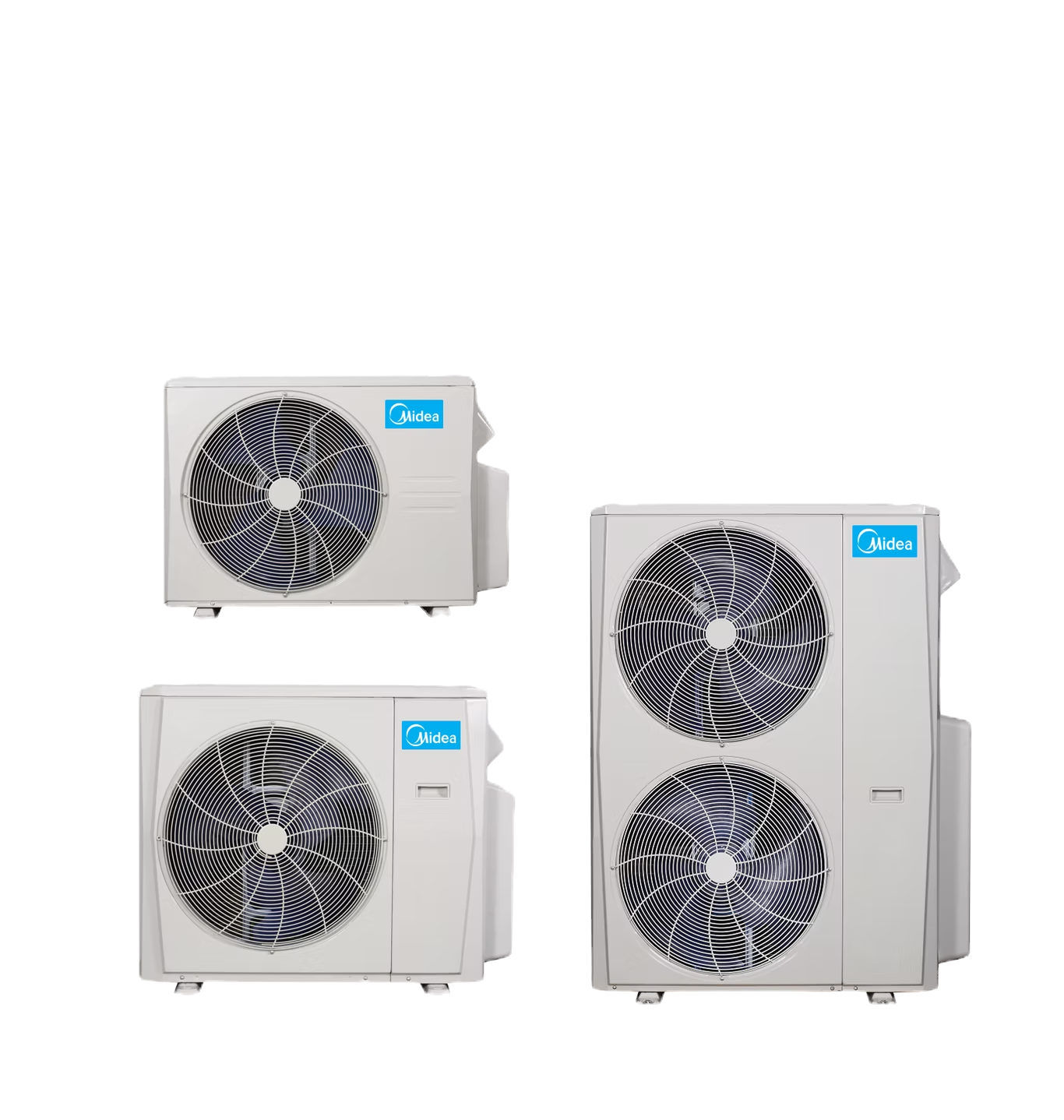

Multi Zone Regular Heat - MO6EX-H60B-2A

Performance & Efficiency

• Cooling Capacity: 19,000 to 62,000 Btu/hr

• Heating Capacity: 60,000 Btu/hr at 47℉

• Efficiency Ratings: SEER2 22.0, HSPF2-4 9.5, EER2 10, COP 3.7

• Standard Operating Range: -13℉ to 122℉ (-25℃ to 50℃)

Refrigerant & Charging

• Refrigerant Type: R454B

• Precharged Amount: 151.68 oz (4.3 kg)

• Refrigerant Oil: V74, charge 1,400 mL

• Additional refrigerant charge per length

Electrical & Power Supply

• Voltage: 208/230V, 60Hz, 1Ph

• Compressor Rated Load Amps (RLA): 25A

• System Minimum Circuit Amps (MCA): 36A

• System Max Overcurrent Protection (MOCP): 40A

• Outdoor Fan Motor: 85W

Physical Specifications

• Outdoor Unit Dimensions: 952×415×1333 mm

• Package Dimensions: 1095×495×1480 mm

• Net/Gross Weight: 107.9/122.6 kg

• Max Piping Length for all rooms: 80 m

• Max Height Difference between units: 15 m

• Max Airflow: 4503 CFM

• Outdoor Noise Level: 65 dBA

• Installation details and connection wiring provided
