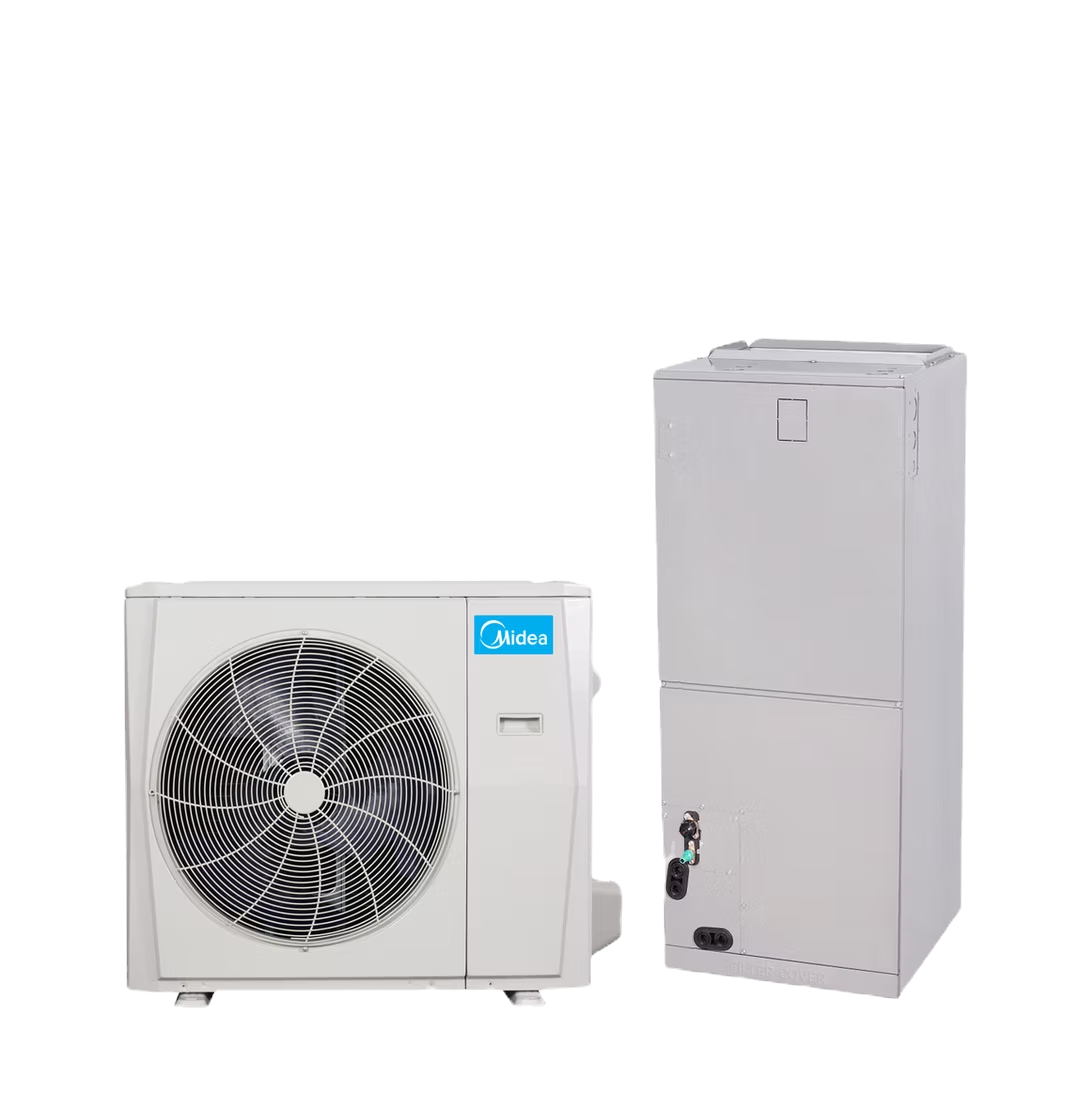

Midea MACHU-H36B-2A | MO1BS-H36B-2A 3 Ton Mini-Split Heat Pump 208/230V

Outdoor Unit Specifications

• Compressor Type: Rotary (Model: KTF250D22UMT)

• Refrigerant: R454B with 670mL oil charge (VG74)

• Air Flow: 2,236.7 CFM max

• Noise Level: 63 dBA

• Dimensions: 37.24 × 16.14 × 31.89 in (946 × 410 × 810 mm)

• Package Size: 42.91 × 19.68 × 34.84 in (1090 × 500 × 885 mm)

• Weight: 150.35 lbs (68.2 kg) net / 160.27 lbs (72.7 kg) gross

Performance & Efficiency

• Cooling Capacity: 36,000 Btu/hr (Min 10,600 - Max 37,700)

• Heating Capacity: 37,000 Btu/hr (Min 5,000 - Max 38,800)

• Efficiency Ratings:

  • SEER2: 16 (Cooling)

  • EER2: 8.5 (Cooling)

  • HSPF2-4: 7.7 (Heating)

  • COP: 3.2 (Heating)

Electrical & Piping

• Power Supply: 208/230V, 60Hz, 1Ph

• System MCA: 33A

• System MOCP: 35A

• Liquid Line Size: 9.52mm (3/8in)

• Gas Line Size: 15.9mm (5/8in)

• Max Piping Length: 213.3 ft (65m)

• Max Height Difference: 98.4 ft (30m)

• Pre-Charged Length: 24.6 ft (7.5m)

• Refrigerant Pre-Charged Amount: 112.88 oz (3.2 kg)

Notable Features

• Multi-position installation: Horizontal (left/right) or vertical (up/down)

• Aluminum coil for efficient heat transfer

• Constant airflow system up to 0.80 In.W.G

• Optional R4.2 fiberglass-free insulation for improved efficiency

• Supports optional auxiliary heat kits up to 25kW

• Easy maintenance design

• Multiple control options:

  • Wired controller (standard or WiFi-enabled)

  • Wireless remote controller

  • Third-party 24V thermostat compatibility
